C6232D

C6132D

C6236D

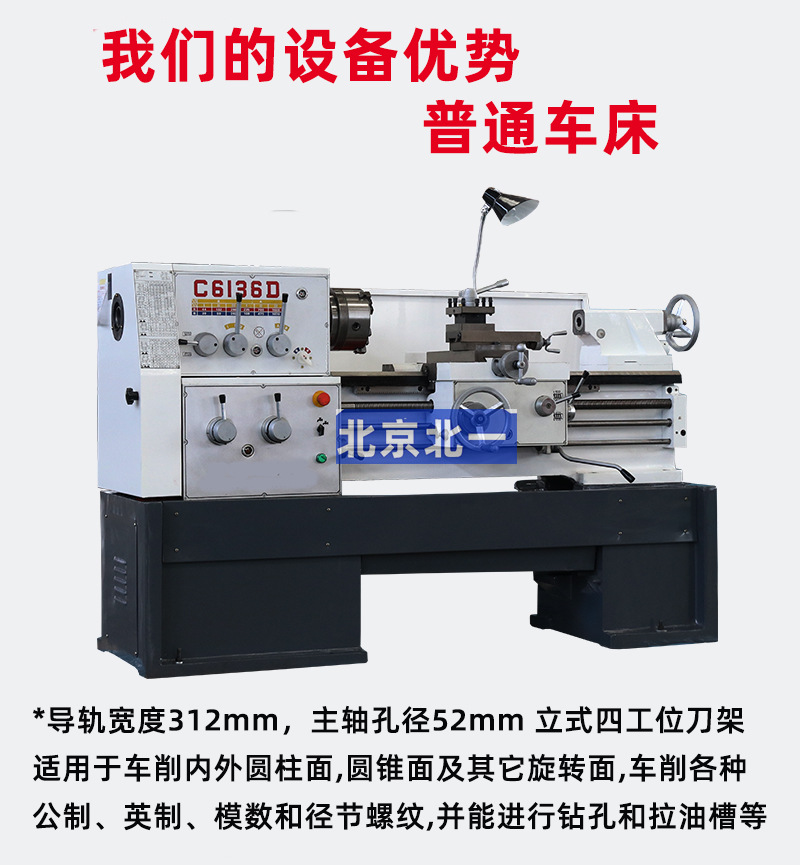

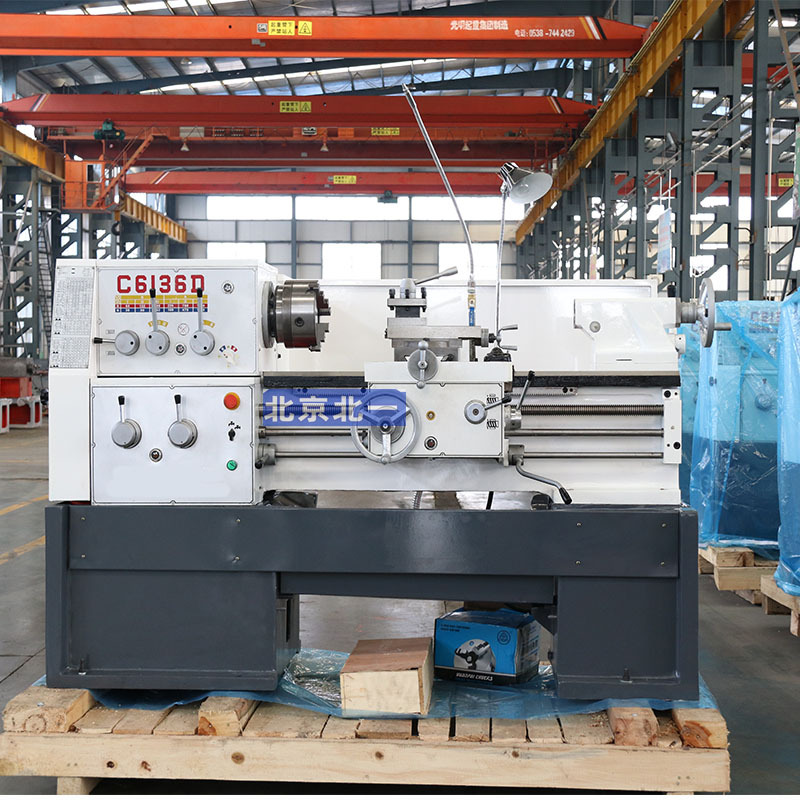

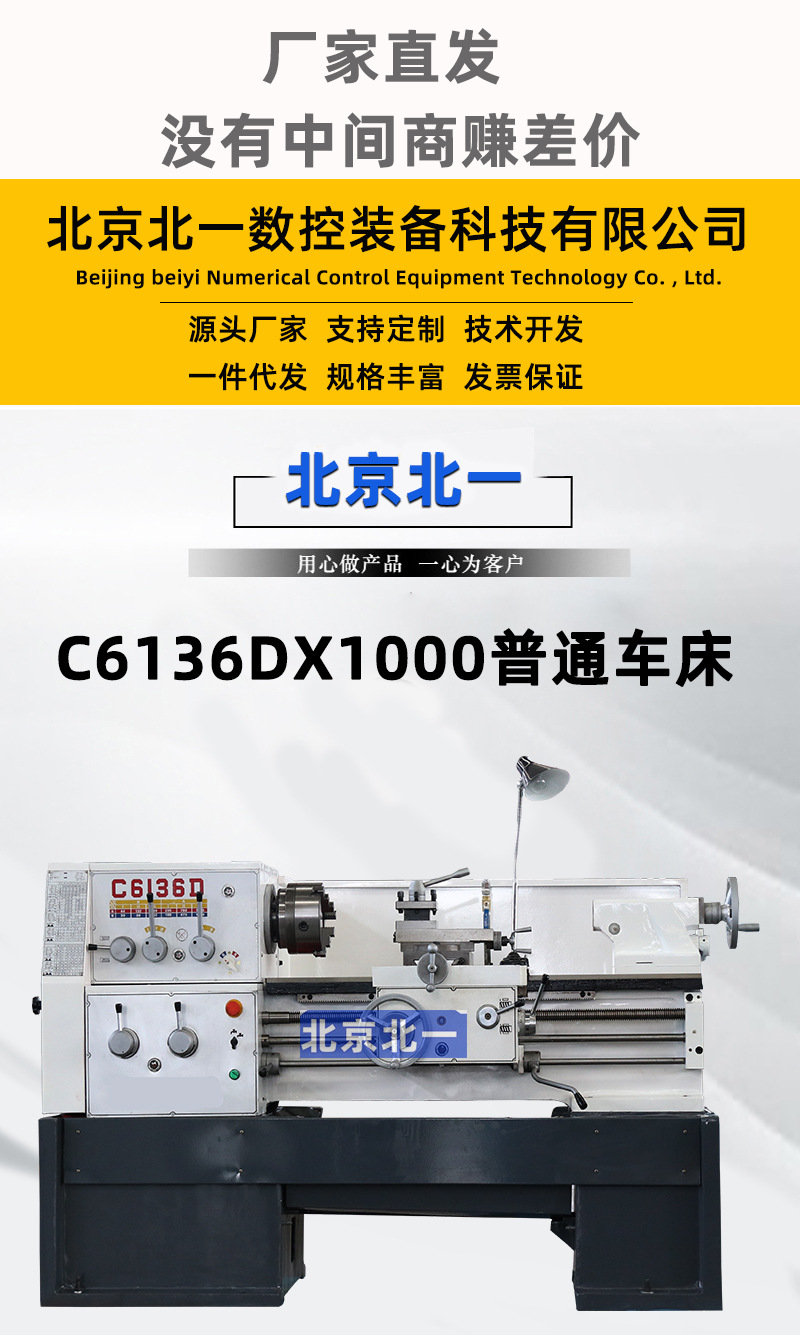

C6136D

C6240D

C6140D

C6250D

C6150D

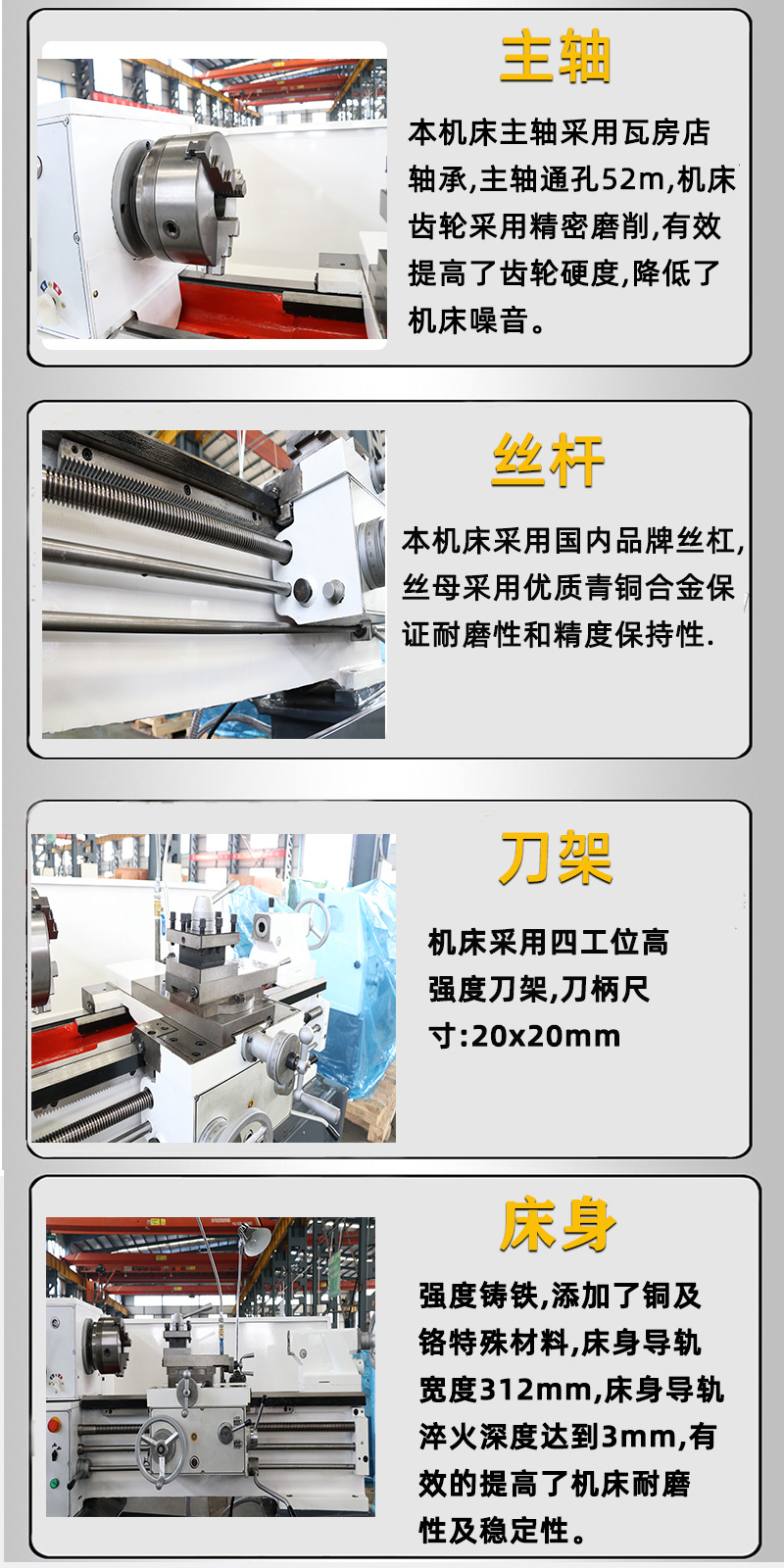

高Center height

160mm

180mm

200mm

250mm

床身上工件直径Max. Swing over bed

320mm

360mm

400mm

500mm

刀架上工件直径Max. Swing over carriage

190mm

190mm

210mm

210mm

马鞍槽工件直径Max. Swing in gap

520mm

-

540mm

-

560mm

-

590mm

-

马鞍槽有效长度Effective gap length

200mm

-

200mm

-

200mm

-

200mm

-

工件长度Max. Length of work piece

500mm or 750mm or 1000mm or 1500mm

主轴孔锥度Spindle taper

MT 6

主轴通孔直径Thru-hole of spindle

52mm/80

转速范围Spindle speeds

30—1600 r/min (12 steps)

横刀架行程Cross travel

240mm

小刀架行程Compound travel

140mm

尾座行程Tail stock center sleeve travel

90mm

尾座套筒锥度Tail stock center sleeve taper

MT 4

电机功率Motor

3/4KW

公制螺纹Range of metric threads (kinds)

0.45-20mm(30)

英制螺纹Range of inch threads(kinds)

80-1.75 n/ I”

纵向进给量Long. Feed per spindle rev.

0.04-2.16mm

横向进给量Cross feed per spindle rev.

0.02-1.08 mm

外形尺寸

Overall dimensions for 500mm

1700*1130*1200 mm

Overall dimensions for 750mm

2000*1130*1540 mm

Overall dimensions for 1000mm

2250*1130*1540 mm

Overall dimensions for 1500mm

2800*1130*1540 mm

净重

Net weight of 500mm

1200kg

1300kg

1500 kg

Net weight of 750mm

1400kg

1500kg

1700kg

Net weight of 1000mm

1500kg

1600kg

1700kg

Net weight of 1500mm

1700kg

1800kg

2000kg
